The Tie
Architecture
Incorporating the essence of origami, I implemented the concept of a tie in my architecture designs. I intended to use the structure of the tie to reveal the fluidity of cements, creating an image of a distorted building. Using the symbolic structure as a basis, I developed a series of models.
DateAugust 2017![](https://carbon-media.accelerator.net/0000000kuK5/3KID2awO6x9bWQelf5jqO4;960x720.jpeg?auto=webp)

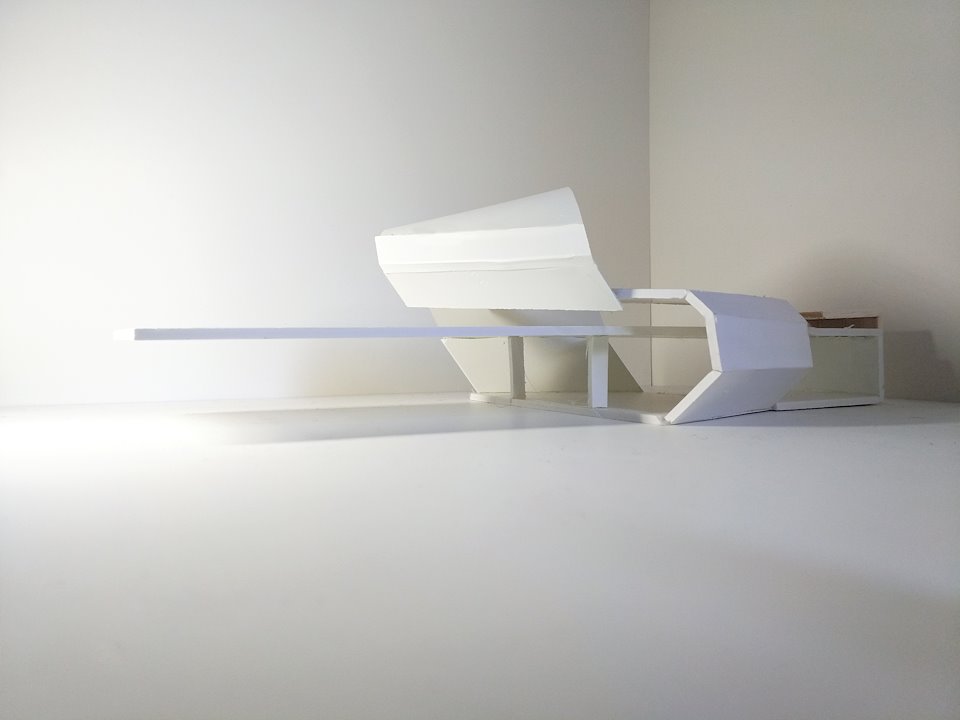

Side Elevation
![](https://carbon-media.accelerator.net/0000000kuK5/3Kd8OhmxcCJeMX9Coe4QHn;960x727.png?auto=webp)

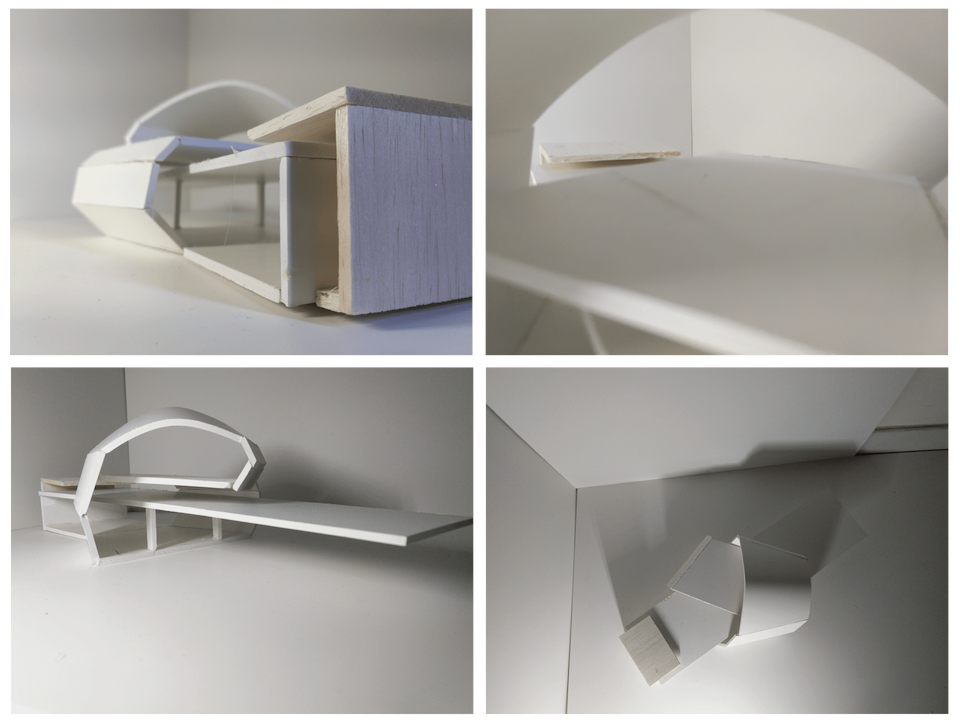

The model viewed from different angles
![](https://carbon-media.accelerator.net/0000000kuK5/1L5BudNNaC9b67QSYXONSV;960x244.png?auto=webp)

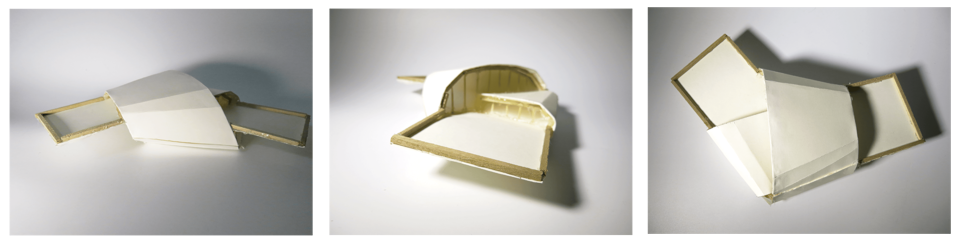

Other Iterations of the idea. This model fully implements the shape of a tie, while the above model made some changes.
![](https://carbon-media.accelerator.net/0000000kuK5/hb8ZVTsjVqbcpHrvvrsqye;960x421.png?auto=webp)

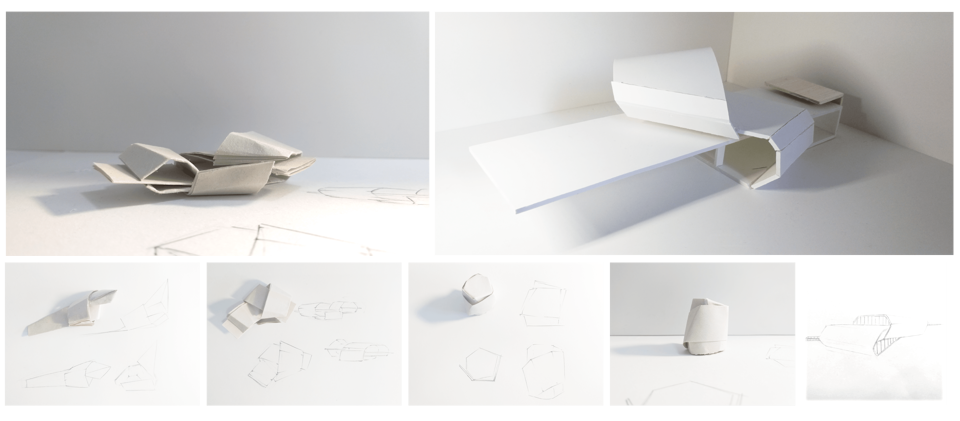

Some basic models made by folding papers when developing the idea. I thought this would be a good idea, as I was so inspired by a tie, which is a common shape in our daily life.
